Supratech Recessed Combination 3-in-1 Hand-washing Station, Stainless Steel

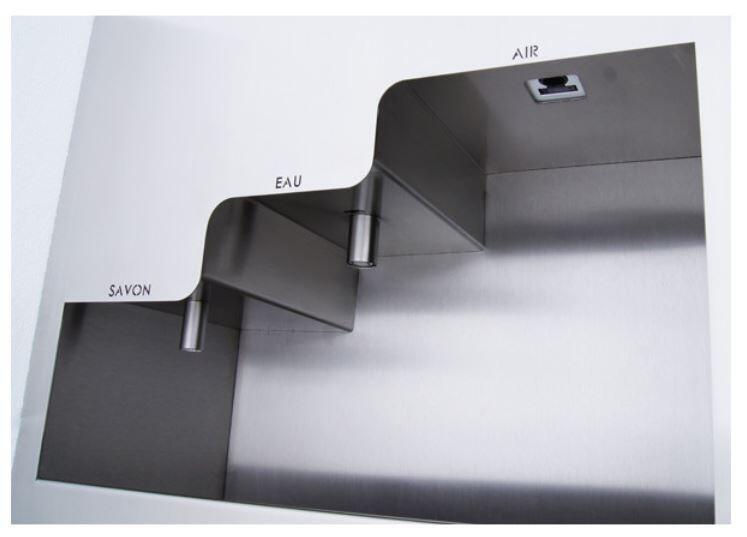

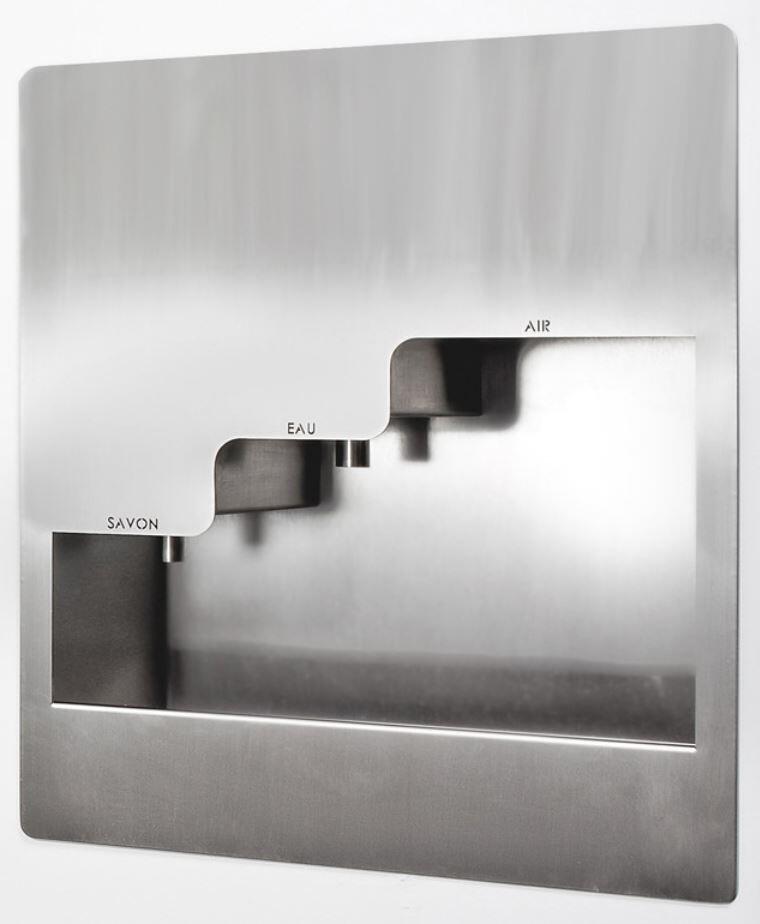

The Supratech 3 in 1 SOAP-WATER-AIR compact stainless steel recessed handwashing station is designed to be suitable for intensive use in public places.
Uses high-speed hand dryer to dry hands within 9 seconds according to UL PCR hand dryer rule.
Robust & Vandal Resistant
Manufactured in France from 2 mm thick AISI Grade 304 stainless steel
Compact and functional.
Its recessed design ensure minimum use of washroom space and keeps all water and soap in the same place to prevent drips and slips.
Hygienic
Soap, water and hand dryer are all activated automatically by infrared sensor to avoid spreading germs though touch.
Safe

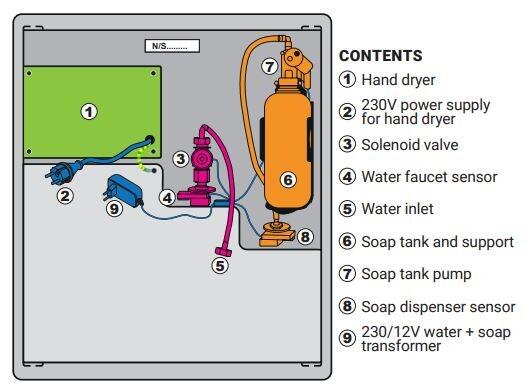

There is no user access to the fittings, controls, water supply or waste piping which are all concealed behind the stud wall or IPS.
Maintenance and soap refill are access only via the reverse of the unit, so a walk-through passage is essential to the rear of the wall.

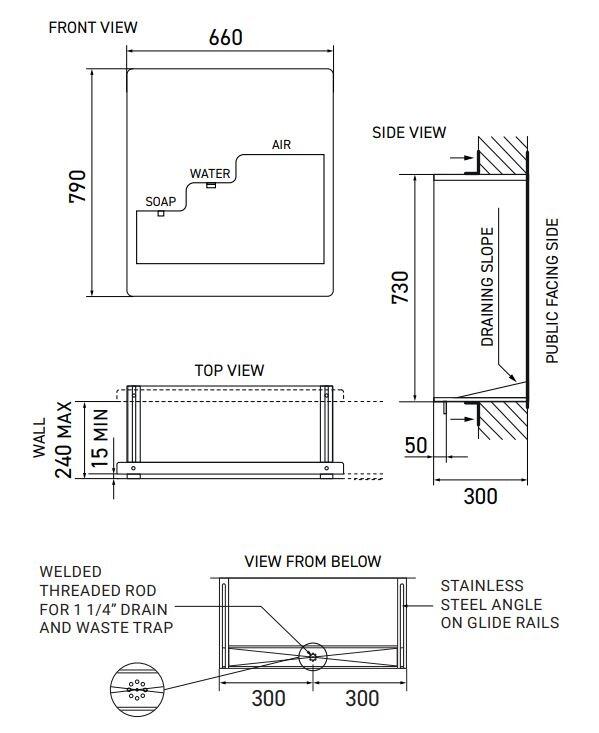

Technical details

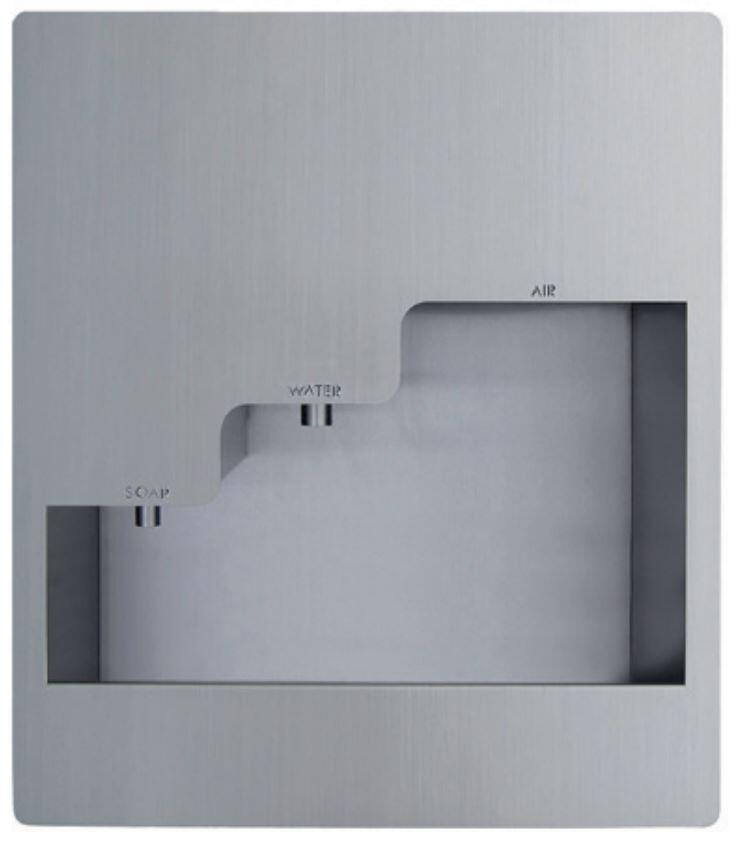

Front finish in satin or polished mirror-like stainless steel
Water pressure 0.5-8 bar.
Premixed water supply using thermostatic mixing valve (not included)
1.25" (32mm) drain
0.5" flexible water inlet
Overall depth (into recess) maximum 240mm for 50mm projection.
Recommended mounting height 730mm to FFL
Technical Specifications: Supratech Recessed Combination 3-in-1 Hand-washing Station, Stainless Steel |  |
| Warranty | |
| Green rating | |
| Drying time (seconds) | |
| Peak Noise level (dB) | |
| Power (Watts) |
1000 Watts-
1000 Watts-
|
| Voltage | 220-240V 50 Hz |
| IP rating | |
| Air speed (mph) | |
| Hygiene Features | |
| Antimicrobial coating | None |
| Width (mm) | 660 |
| Height (mm) | 790 |
| Projection/Depth (mm) | 300 |
| Finishes available | |
| Aperture Type | Jet Tap |
| Automatic / Manual | Automatic |
| External Switch | No |
| Heating Element | Yes (Adjustable) |
| Max Air Volume (m3/hr) | |
| Max Motor Speed (rpm) | |
| Standby Wattage (Watts) |
